SOLID STATE LOGIC SDI-MADI

4 x SDI inputs on 75 ohm BNC connection. 16 audio channels per input extracted from all four audio groups
Auto-detection of SD/HD/3G input format
Active loop-through of each input to 75 ohm BNC output connection
Full Dolby® E/Dolby® Digital transparency for loop through
32 x unbalanced AES3 digital audio outputs via 37 pin D-Sub
Dual 64 Ch MADI digital audio output via ST Multimode Optical and Coax

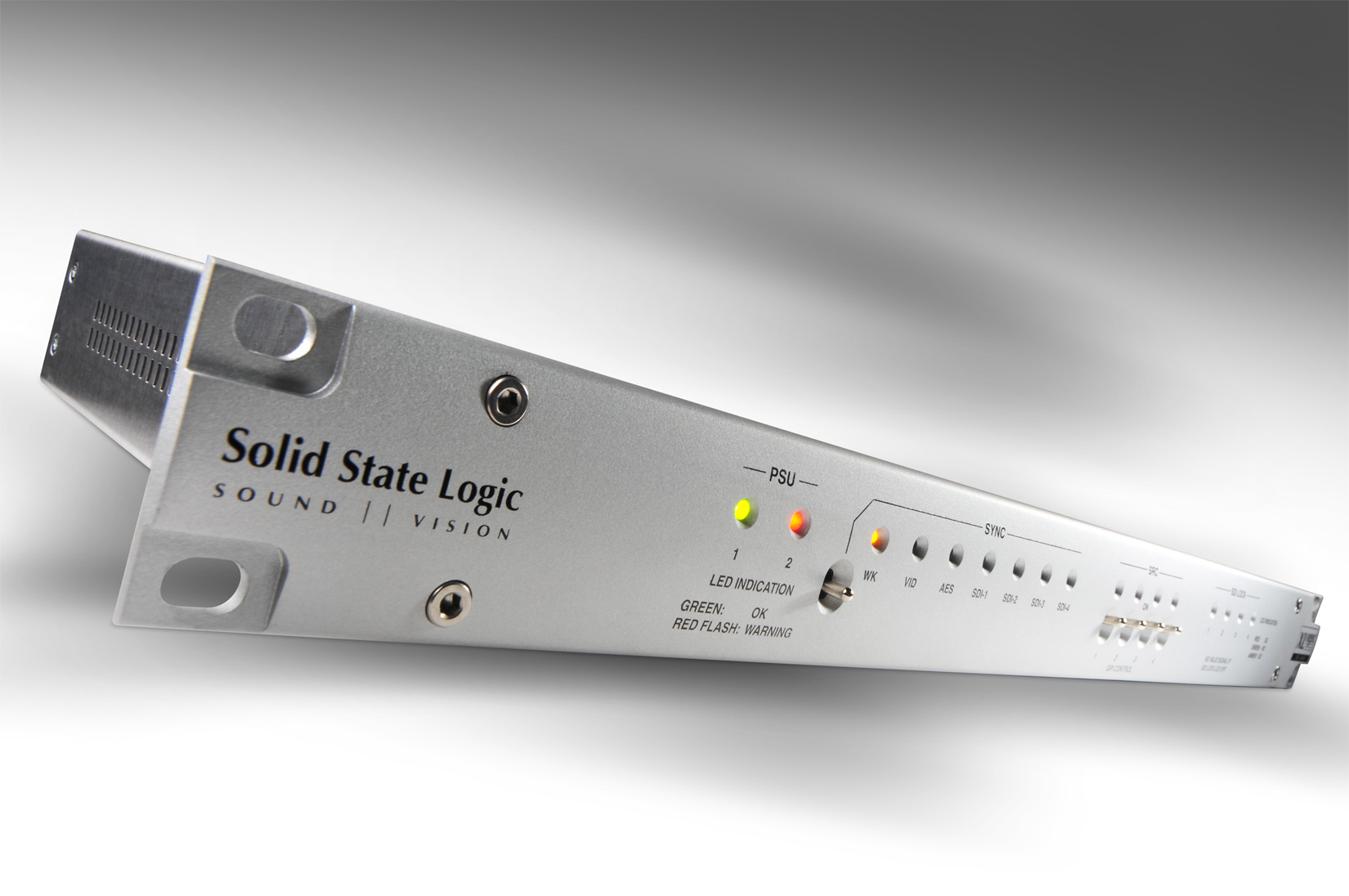

Front Panel LED status indication for PSU, SYNC, SRC and SDI Lock
Comprehensive sync options (Wordclock, AES, Black and Burst, SDI1 - 4)
Wordclock and AES sync outputs
On-board sample rate convertors (SRCs), enabled locally or remotely via GPI
Dual power supplies, with separate IEC mains connectors
Optional 19” AES Signal Breakout panel providing AES-3id outputs on 32 x BNC connectors (75 ohm)
